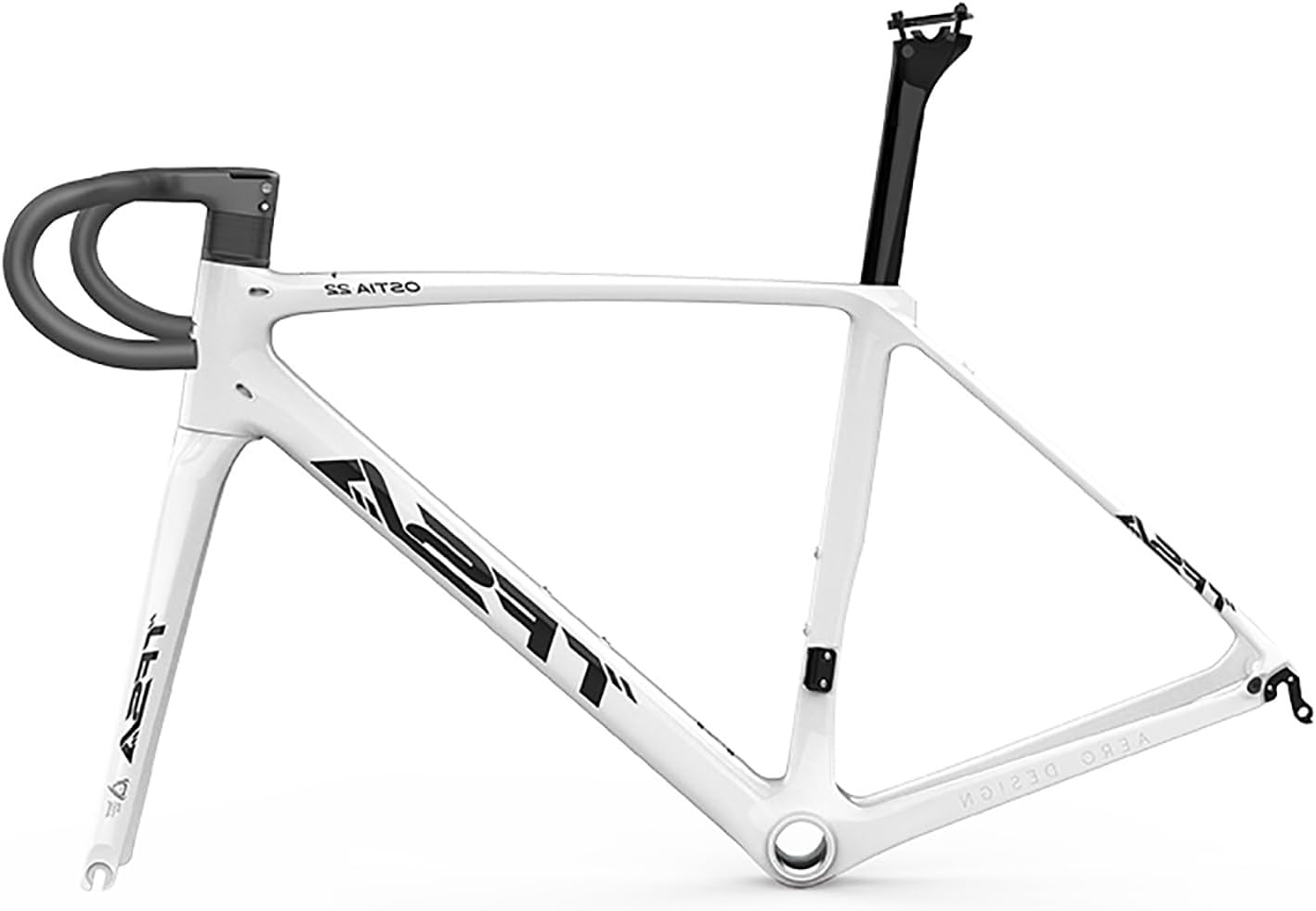

700C 48/51/54/56cm Carbon Fiber Bike Frame Carbon Road Gravel Bike Frameset Hardtail Mountain Bike Frame Frame QR Internal Routing(Black 1,51cm)

Carbon Road Bike Framest – Lightweight, Stiff & High-PerformanceAerodynamic Design – Optimized tube shapes cut through wind for maximum efficiencyHidden internal routing: The frame with internal routing is simple and beautiful, with low wind resistance, and will not be affected by external forces on shifting and braking. The shifting cable is not easy to age.Frame name: Carbon fiber rim brake road frameFrame size: 48/51/54/56CMFrame material: T800Frame weight: 786g (51cm) unpainted maximum difference ±20gHeadset: 1-1/8′1-1/2′upper 52mm lower 52mmBearing: upper 8mm lower 7mmBrake: rim brakeBottom bracket model: T47 threaded Φ46.8mm, L 86mmInstallation: Applicable to DI2 and MechanicalSuitable wheels: 700C/23-25-28Handlebar weight: 370gFront fork weight: 332gFront fork diameter: 28.6mmSeat tube weight: 205gSeat tube length: 360mmProducts include: frame, front fork, seat tube, handlebar, bowl set, suspension center and wire accessoriesNotice:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right Bikes frame.

• 700C Fixed Gear Bike frameset：T800 carbon fiber track bike frame, 48/51/54/56CM windbreaker Frames, Coaster Brake Bike frame, weight approx 786g.
• Carbon Fiber Frame: high strength, good rigidity and impact absorption. Carbon fiber molded in one piece, smooth and natural transition, smooth surface, overall beautiful and good-looking.
• Features：road off-road levels，internal routing，direct mount front derailleur，lightweight，frame≈786g，fork≈332g.
• Specifications：for 52x52mm headset、T47 threaded Φ46.8mm, L 86mm press-in bottom bracket、seat post、seat clamp、thru axle.
• Package：includes frame, fork, seat tube, handlebar, bowl set, suspension center and wire accessories
