M27-150-P Brushed Electric Motor, 150W, 12V, 24V or 36 VDC, 3800 RPM
Product details
| Management number | 213658674 | Release Date | 2026/04/12 | List Price | $19.60 | Model Number | 213658674 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

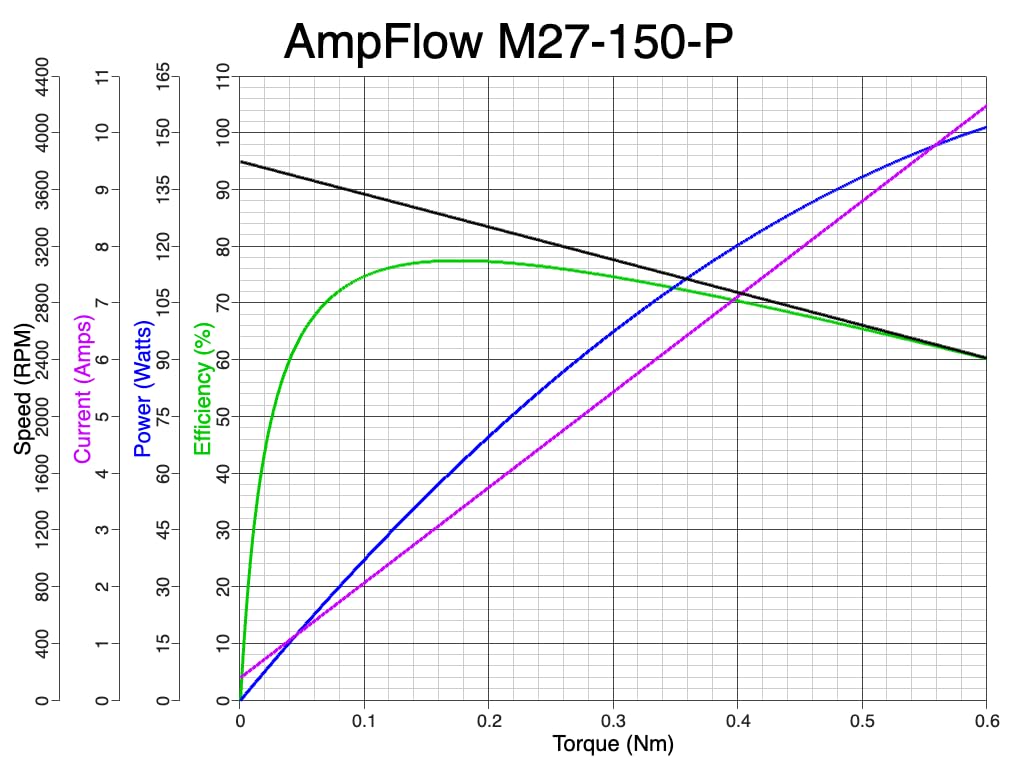

The AmpFlow M27-150-P motor is designed to deliver good performance and efficiency at an economical price. This is achieved by the use of four brushes and advanced electromagnetic computer modeling and design.The motor is 2.7 inches in diameter and 3.9 inches long. The shaft rides in two high-quality ball bearings. The heavy-gauge motor leads are 12 inches long. The motor weighs 3.0 pounds, and it is finished in a black powder-coat paint.This reversible motor can be used at voltages ranging from 12V to 36VDC. At 24 Volts, the no-load speed is 3800 RPM. The rated power output is 150W at 2800 RPM at 9 Amps. Peak efficiency is 79%.This motor is supplied with an 19-Tooth pulley for 3 mm HTD belt.AmpFlow® motors are used in diverse applications, including robots, electric scooters, electric bicycles, and other personal transport systems. Search Amazon for "AmpFlow motors" for more choices.
- Measures 2.7 inches diameter (68 mm) by 3.9 inches long (99 mm)
- No-load rpm: 3800 at 24 volts; Can be used with voltages ranging from 12V to 36VDC
- Continuous power: 150 watts (1/5 horsepower)
- Peak efficiency at 24V: 79%
- Supplied with 19-Tooth pulley for 3 mm HTD belt
| UPC | 680569239655 |
|---|---|
| Model | M27-150-P |
| Speed | 3800 RPM |
| Voltage | 12 Volts |
| Brand Name | AmpFlow |
| Horsepower | 150 Watts |
| Unit Count | 1.0 Count |
| Item Weight | 3 Pounds |
| Manufacturer | AmpFlow |
| Material Type | Copper |
| Included Components | One motor |
| Global Trade Identification Number | 00680569239655 |
